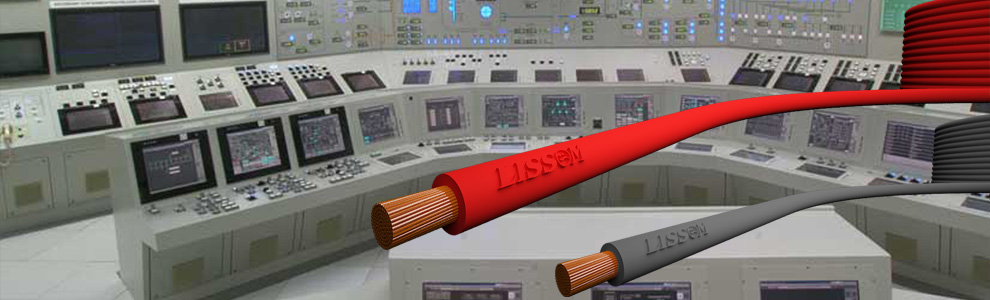

LISSOM - Single Core / Panel Board Cable

"LISSOM" continuously strives to offer the most reliable wiring solutions to its customers and as a result it offers the most reliable products like Panel board cables. These cables, manufactured from 99.97% pure bare copper conductors and insulated with a special grade PVC compound, are used in various industries for wiring in control panels, machines and other electrical installation. As the usage of these cables in mainly into various industries, we have not only made them extra tough but have taken special care to make them water, oil, grease and acid resistant.

Technical Table - "LISSOM" Single Core / panel Board Cable as per IS : 694/1990 (650/1100 V)

Area in sq. mm	Conductor Construction in General*	Max DC Resistance Ohm/Km At 20° C	Insulation thickness in mm Nominal	Current Rating in Amp.
0.50	16/0.20	39.0000	0.6	6
0.75	24/0.20	26.0000	0.6	9
1.00	32/0.20	19.5000	0.6	14
1.50	30/0.25, 48/0.20	13.3000	0.6	18
2.50	50/0.25, 80/0.20	7.9800	0.7	24
4.00	56/0.30	4.9500	0.8	32
6.00	84/0.30	3.3000	0.8	36
10.00	140/0.30	1.9100	1.0	45
16.00	224/0.30	1.2100	1.0	60
25.00	350/0.30	0.7800	1.2	75
35.00	490/0.30	0.5540	1.2	95
50.00	700/0.30	0.3860	1.4	125
70.00	360/0.50	0.2720	1.6	170
95.00	485/0.50	0.2060	1.8	210
120.00	608/0.50	0.1610	2.0	235
150.00	750/0.50	0.1290	2.0	295
185.00	925/0.50	0.1060	2.2	330
240.00	1221/0.50	0.0801	2.2	400

*The number and diameter of conductor strands are for reference only.

"LISSOM" Cables will not responsible for any damages arising out of incorrect application of its products.

The Above data is Indicative and may be revised without prior Information
